How to Update Accord 2009 ECU with Honda HDS HIM?

 Honda tutorial: update ECU maps / firmware using Honda HIM diagnostic system (Europe).  This user has updated his Accord 2009 EU from 37805-RL0-F010 to 37805-RL0-F030 firmware using this method.



NOTE:

  • HDS software does not update itself – it is only a tool for working with the database.
  • Better backup ECU data with Ktag before update your ECU.
  • Ensure Car Battery is fully charged and you have a battery charger connected for precautions.
  • Do at YOUR OWN RISK.



The user obtained a collection of the maps from a Russian forum hondahybrid.ru, so thanks go to that site. My particular map I couldn’t find from the normal ECURewrite distributions but this website had them.

This is a merged collection database (2003-2019) of ECU updates for ECU Rewrite Europe / U.S.

Ultra pack combines all RWD files if you are still missing any, seems to include older revisions too.

The instructions are mainly for Europe, we would think with the U.S maps, you would extract the rwd files and replace the ones in the Europe folder and the steps being similar.

Procedure:

Step 1 – Confirm what family your current ECU Program ID is to see if it has any updates available.

Ensure Honda HDS is currently installed and working (Other guides out there for this). I was using Honda HDS 3.016.033.

Open Honda HDS.
Connect HIM device to car with ignition on II.
Within HDS, go to Honda Systems- Diesel / Petrol- Data List

Update Accord 2009 ECU with Honda HDS HIM 1

Update Accord 2009 ECU with Honda HDS HIM 2

Update Accord 2009 ECU with Honda HDS HIM 3

It should now say the ECU Program ID – example 37805-RL0-F030

Update Accord 2009 ECU with Honda HDS HIM 4

Extract ECURewrite archive.
Copy COMDLG32.OCX to C:\Windows\SysWOW64 (Windows 64-bit) or C:\Windows\System32 (Windows 32-bit).
Within the extracted folder, find ECU.mdb and make a copy of it to view. This is just so we don’t alter the original file.

Open the copied ECU.mdb with Access.
OK through any missing file errors if prompted.

Click File – Options

Update Accord 2009 ECU with Honda HDS HIM 5

Click Current Database
Tick Display Navigation Pane

Update Accord 2009 ECU with Honda HDS HIM 6

Click Navigation Options
Tick Show Hidden Objects
Click OK

Update Accord 2009 ECU with Honda HDS HIM 7

Close and reopen ECU.mdb.
OK through any errors.

On the left pane click Models
My original map was 37805-RL0-F010
From this database I can see there is an update revision 37805-RL0-F030 , under this is my original 37805-RL0-F010 which is listed as a CompatibleID.
I’ll check then to see if any of the later revisions are in the ECURewrite files list. Look for it in the ECURewrite directory with File Explorer. Example 37805-RL0-F030.rwd

Update Accord 2009 ECU with Honda HDS HIM 8

ECURewrite installation is currently default for Europe version.
I’ve not tested other regions, but you would need to replace HIM.ini with the contents of the other ini files GE / JP / LA.
For regions other than Europe, I presume also copy the RWD files from the J2534Rewrite_USA.7z. into this folder before running Setup.exe.

Install ECURewrite 6.27.
Check in C:\HJEGRWAP\CalibFiles\
You should have a filename for the update listed earlier, example 37805-RL0-F030.rwd

Run CM Update (ECU Rewrite)

Update Accord 2009 ECU with Honda HDS HIM 9

Ensure Laptop is connected via mains and it doesn’t go to sleep. It can take around 20mins to update.
Disable any Laptop sleep and hibernation settings in Control Panel > Power Management for stability.

Click Pass-thru Mode

Update Accord 2009 ECU with Honda HDS HIM 10

Select PGM-FI
Click Green tick

Update Accord 2009 ECU with Honda HDS HIM 11

An update should be found if available.
Follow through the prompts to update.

I believe it updates two modules, between these updates the screen may seem like it hangs on a white page, continue waiting for 10min and it will eventually complete.

Update Accord 2009 ECU with Honda HDS HIM 12

Done.

https://www.obdii365.com/service/update-honda-ecu-firmware-with-hds-him.html

Wednesday, June 15, 2022

Free Download Honda HDS V3.104.024 for HIM

 06/2022 Honda HDS diagnostic system software v3.104.024 has been tested and verified working without issue with HIM double-board by obdii365.com engineer.



Software version: 3.104.024

Operating system: Windows XP, Windows 7 32bit/64bit

Multi-language: English, Spanish, French, Indonesian, Korean, Portuguese, Thai

Vehicle coverage: HONDA/ACURA 1992 to 2020/02.

Free Download Honda HDS V3.104.024  1

Free Download Honda HDS V3.104.024  2


Free Download Honda HDS HIM V3.104.024 software

https://mega.nz/file/JgtEkb4K#jDs8le68Bz6soLyJ9H7LB061C3_BvbKgnIwA1dp7JzE

Software Including:

both older version HDS 3.102.051 and  newer HDS 3.104.024





How to install Honda HDS 3.104.024?

1. Install the decompression software war560, if the computer has been installed decompression software does not need to re-install

install Honda HDS V3.104.024 software 1

2.UNZIP the file HDS 3.104.024, double-click on “Setup” in the HDS3.104.024 folder, click on the prompt next step, select the appropriate area based on your vehicle’s production area, then the next step, the next step until installation is complete

install Honda HDS V3.104.024 software 2

install Honda HDS V3.104.024 software 3

install Honda HDS V3.104.024 software 4

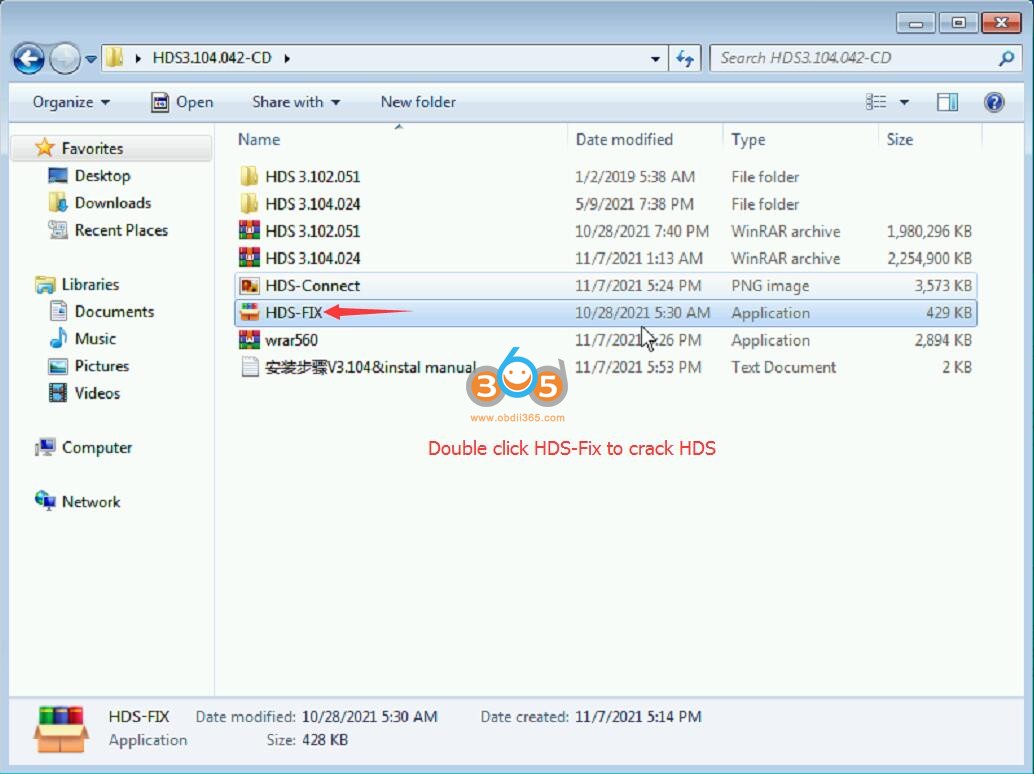

3.Double-click on the file HDS-FIX and the decrypted file will be automatically installed

install Honda HDS V3.104.024 software 5

4. Turn on the car ignition switch, connect the HDS HIM diagnostic tool to the vehicle OBD diagnostic port, and connect the COM port to the COM port of the computer.

If your laptop does not have a COM Port, use a USB to R232 serial converter which is included in the HIM pacakge.

install Honda HDS V3.104.024 software 6

5. Right click “My Computer” to open the device manager – port (COM) – change the serial port to COM1

install Honda HDS V3.104.024 software 7

install Honda HDS V3.104.024 software 8

install Honda HDS V3.104.024 software 9

6. Double-click the Honda Diagnostic System icon on the desktop and the diagnostic software will open for normal use.




Honda Diagnostic System HDS HIM clone any good?
